New 12v circuit?; how to install
Topic Started: Aug 27 2012, 03:46 PM (1,593 Views)
brian394
No Avatar
Newbie
[ * ]

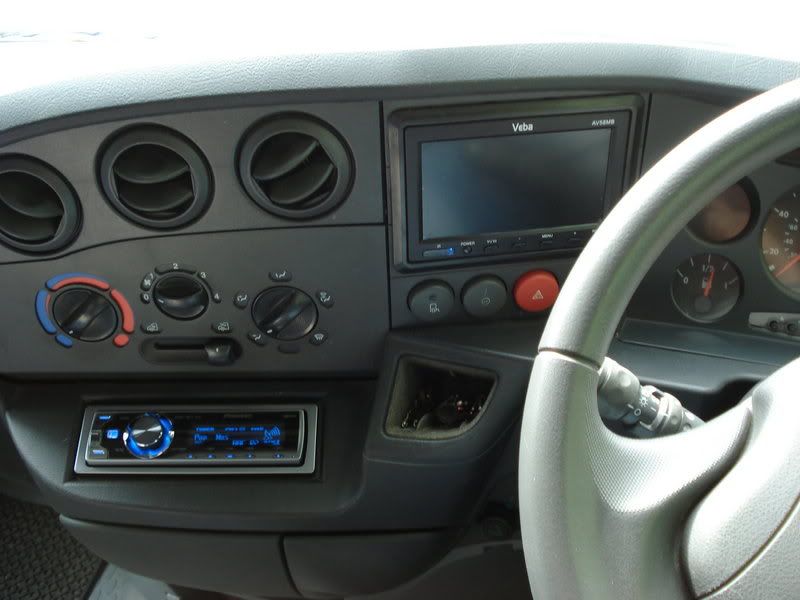

Hi, I've just got myself an 04 daily, and currently in Afghan. When i return in a month, I'm going to fit a reversing camera, and I wanting to mount it similar to the way seen here

Posted Image



Now, I know I could tap into the positive wire either going to the stereo or to the cigarette lighter, but how hard would it be to install a full new circuit just for the camera and monitor? I've searched both on here and google, but can't seem to find the a guide showing how to do it, but doing it so that it only has power when the ignition is on?

I apologise if this has been asked and answered already.

cheers
Offline Profile Quote Post Goto Top

radiotwo
No Avatar
Member
[ *  * ]
brian394
Aug 27 2012, 03:46 PM
Hi, I've just got myself an 04 daily, and currently in Afghan. When i return in a month, I'm going to fit a reversing camera, and I wanting to mount it similar to the way seen here

Posted Image



Now, I know I could tap into the positive wire either going to the stereo or to the cigarette lighter, but how hard would it be to install a full new circuit just for the camera and monitor? I've searched both on here and google, but can't seem to find the a guide showing how to do it, but doing it so that it only has power when the ignition is on?

I apologise if this has been asked and answered already.

cheers
Hi Brian

Why don't you just take a connection from the reverse wire at the back, so when you select
reverse the camera comes on.

Much easer than running a feed all the way front to back !

Radiotwo
Offline Profile Quote Post Goto Top

brian394
No Avatar
Newbie
[ * ]
That is the 2nd option. But i was thinking about using the monitor as more of a rear view constantly.

If i was to do that, where would I connect the monitor to, so that it also comes on under reversing? Or should the monitor automatically turn on when i select reverse aswell?
Edited by brian394, Aug 27 2012, 05:06 PM.
Offline Profile Quote Post Goto Top

radiotwo
No Avatar
Member
[ *  * ]
brian394
Aug 27 2012, 05:04 PM
That is the 2nd option. But i was thinking about using the monitor as more of a rear view constantly.

If i was to do that, where would I connect the monitor to, so that it also comes on under reversing? Or should the monitor automatically turn on when i select reverse aswell?
For the monitor, I would take a switched feed from the back of the radio.

If it just a monitor then it will need a supply, but if it is a radio,sat-nav etc, then it might
come on when using the reverse, but only on top notch system's

Radiotwo
Offline Profile Quote Post Goto Top

brian394
No Avatar
Newbie
[ * ]
It's just monitor for the camera. Think I'll just stick to doing it that way.

However, I'm also wanting to add a 2nd 12v outlet, to power my satnav, but I'm wanting the outlet hidden behind the dash, so the cabling is all nice and neat.

Is that just a case of adding in a new 12v socket onto the existing 12v socket?

If so, would it be


-------|---positive wire----socket--------|-negative wire
____|_________________________|
____|---- new socket ------------------|



or should i run it in line

----------socket-------socket---------

would that work?
Edited by brian394, Aug 28 2012, 12:43 PM.
Offline Profile Quote Post Goto Top

JohnBF1
No Avatar
F1Fan
[ *  * ]
brian394
Aug 28 2012, 12:41 PM
It's just monitor for the camera. Think I'll just stick to doing it that way.

However, I'm also wanting to add a 2nd 12v outlet, to power my satnav, but I'm wanting the outlet hidden behind the dash, so the cabling is all nice and neat.

Is that just a case of adding in a new 12v socket onto the existing 12v socket?

If so, would it be


-------|---positive wire----socket--------|-negative wire
____|_________________________|
____|---- new socket ------------------|



or should i run it in line

----------socket-------socket---------

would that work?
I have a reversing camera and I picked the positive from the reversing lights.
My 12v for usb and extra sockets i got from back of cigarette lighter no problems with loading. nice and hidden.
